DC GEARHEAD MOTORS
|
|
Click Thumbnail for larger photo
|
|
Also see our selection of AC Gearhead motors On mail order sales of less than $15 there is an additional $5 handling fee. |
|
 |
325 RPM JAPAN SERVO 24 VDC 325 RPM, #DME60A26-1. Dimen 4 1/2" X 2 3/4" X 6 1/2" long. 8mm shaft. RFE DCGM2152. . . . . . . . . . . .$29.95 |
 |

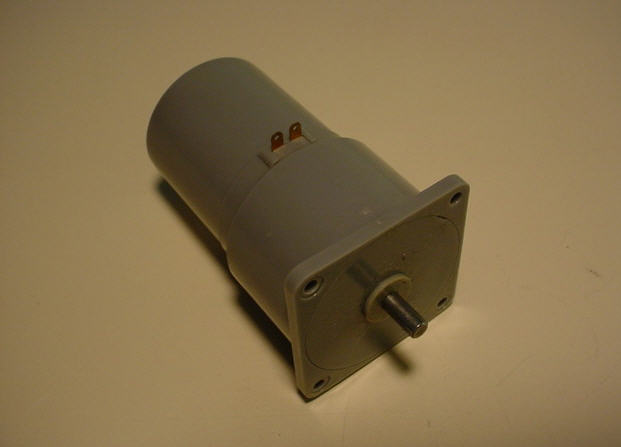

23 RPM Airpax 9904 12v DC, Permenant magnet, 23 rpm, gearbox ratio 150.4 :1, body dimen 1-9/16" square x 2-9/16" long, Shaft 5/32" dia x 5/16' long DCGM9456. . . . . . . . . . . .$14.95 |
 |
350 RPM Barber-Colman CYQM23061-5-2, 14 VDC reversible, 350 rpm, with a built-in brushless AC generator 6 volt AC out at 1800 rpm of motor, gearbox ratio 10:1, Dimensions2" diam x 3.25 " long shaft 1/4 dia x 1" long DCGM9711. . . . . . . . . . . .$29.50 |
 |
300 RPM Barber-Colman FYQF-63310-9, 12VDC, reversible, 300 rpm, body dimen, 1-3/8 dia x 2-3/4" long, shaft 0.1875" dia x 13/16" long DCGM9902. . . . . . . . . . . .$20.00
|
 |
200 RPM Buehler #1.61.048.092 24VDC, 200 rpm, Shaft 5mm dia x 9/16" long with flat and Plastic gear pitch of 3/32", Body dimen 1-27/64" dia x 2 1/16" long DCGM2303. . . . . . . . . . . .$19.95 |
 |
14 RPM Buehler #1.61.046.037, 24VDC, 14 rpm, shaft 5mm dia x 20mm long Body dimen 1-3/8 dia x 2-9/16" DCGM2300. . . . . . . . . . . .$24.50 |
 |
162 RPM Denso 162000-2241 12VDC 162 RPM, shaft 0.35" dia x 1.25" long. Body 7.50" x 3.75" wide x 2" thick Left-hand configuration. Limited Quantity DCGM1501 . . . . . . . . . . .$75.00 each |
 |
180 RPM Reversible 12VDC 5-1/2" long,1-/3/4 dia, worm screw 3-1/2" long .467" dia, electric seat motor, Clevis mount, available Left or Right configuration DCGM3203. . . . . . . . . . . .$24.95 |
 |
600 RPM
ESCAP 12 VDC, 600 RPM, #23D-21-216E-86 dimen 7/8" X 3-1/2" Long, Shaft 5/32" x 7/16" long. Gearbox 5.75:1 . DCGM9850. . . . . . . . . . . . . .$50.00
|
 |
100 RPM Buehler 18 DCV 100 rpm, body 2" x 1-9/16" x 1-1/8", shaft 0.118" x 3/8" long, DCGM3204. . . . . . . .. . . . $22.50 |
 |
15 RPM Globe Motor #299-A349-0007, 12VDC, 15 rpm, shaft 3/16" dia x 5/16" long, Body Dimen 1-3/8 dia x 2-13/16 long DCGM9904. . . . . . . . . . . .$25.00 |
 |
270 RPM Matsushita GMX-6MP013A 270 rpm, 24 DCVreversible, gearbox ratio 12.5:1, encoder mounted on the rear of unit is a HP #HEDS-9100 series with 100 counts per revolution. shaft 8mm dia x 1-1/16 long body dimen 2-3/8 square x 5 " long. RFE Sold out |
|
|
21 RPM Faulhaber #1212E006G Swiss made 235:1 gearhead, 6VDC, motor 16,000 rpm, with gearhead- 21 rpm, shaft 2mm dia x 5.9mm long with flat. Dimen with motor and gearhead 12mm dia x 37mm long (excluding shaft) DCGM2301. . . . . . . . . . . .$29.95 |
 |
4 rpm and 18 rpm Gearmotor 12VDC w/ 1/2" dia shaft 1" long, body 4-3/4" x 2-3/4" x 5" DCGM3201 -(3664) . . . . . . . . . 4 rpm DCGM3202 -(3663) . . . . . . . . .18 rpm NEW $30, or RFE $20 |
 |
8 RPM Multi Products #3462, 12VDC Perm Magent reversible, 8 rpm, body dimen 2-1/2" x 4"x 3-1/4", shaft 5/16 x 1" long Sold Out
|
 |
58 RPM Sayama 12SM-AT3 12VDC, 58 rpm, body dimen1-7/16" long x 1/2" dia, shaft 2mm x 3/16" long DCGM3205 . . . . . . . . . . . . . . .Sold Out |
 |
4.6 RPM RAE #TENV1605, 24VDC 4.6 rpm Dimen 4" x 4-3/4 x 8-1/2 long, shaft 5.8 " dia 1-1/2 long Sold Out |
 |

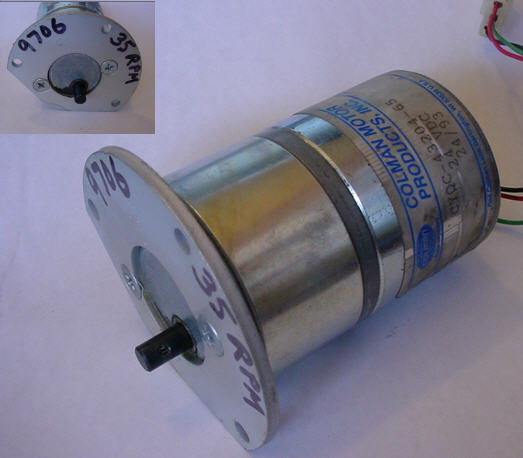

35 RPM Barber Colman CYQC-43204-65, 24VDC Reversible 2" dia x 3¼" long, ¼"shaft, 3/8 long DCGM9706 . . . . . . RFE. . . .$25.00
|
 |
40 RPM Micromotor w/ Magnetic Encoder
Faulhaber #1616E010 w/16AC141 1-428 gearhead 10-12 VDC DCGME2500 . . . . . . . . . . .$25.00 |
|
On mail order sales of less than $15 there is an additional $5 handling fee. |
